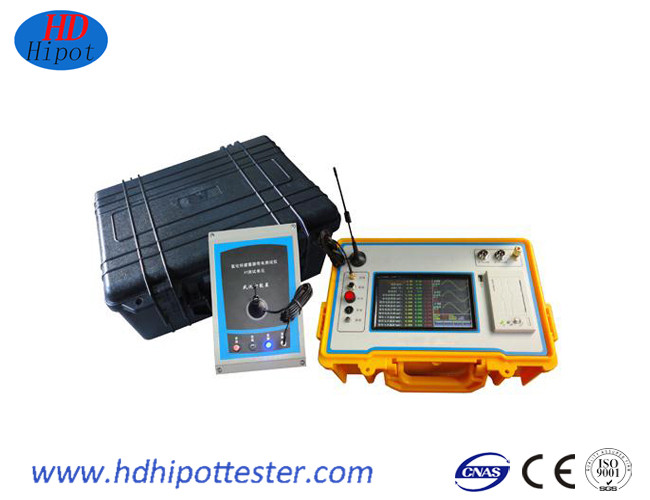

HDYZ-302 Zinc Oxide Arrester Tester



Introduction

 This product special applies to test the AC parameters of MOA



Features

1.800x480 Color LCD graphic displays.
2.Equipped with an embedded industrial control systems.
3.Touch operation, support for external wireless mouse.
4.Data management capabilities.
5.DC/AC power supply, with high-energy lithium-ion battery, especially for no-power place.
6.Simultaneous measurement of three-phase
7.Characterization data, the waveform display with the screen.
8.Variety of voltage reference signal sampling
① Wired: From the PT terminal measuring winding to take signal, after V / I conversion (isolation), the digital signal wire transmission
② Wireless: From the PT terminal measuring winding to take signal, after V / I conversion (isolation), the digital signal wireless transmission, eliminating the cable long-distance connection
③ no voltage: No need to take the signal from the secondary terminal of voltage transformer, use the way of software calculate to find the voltage reference
9.Safe and reliable, voltage channel using isolation V / I conversion, avoiding the PT secondary short circuit, reduces signal distortion
10.Small in volume, light in weight, easy to carry.
11.Charged, power outages, laboratories can be applied.



Parameters

Power	DC or AC 220V, 50Hz.
Reference voltage input range (voltage reference signal):	50Hz、30～100
Measurement parameters	Leakage current full current waveform, fundamental rms , peak value
	Resistive component of the leakage current fundamental RMS and RMS 3,5,7,9
	Resistive component leakage current peak value
	Full voltage, full current phase angle difference
	Run (or test) voltage rms
	Arrester Power
Measurement accuracy	Current	full current > 100μA, accuracy: ± 5% of reading ± 1 digit
	Voltage	reference voltage signal > 30V accuracy: ± 2% of reading ± 1 digit
Measurement range	Leakage current 100μA～10mA(peak value)，voltage 30～100V
Voltage sampling	the voltage signal of voltage transformer (or test transformer winding) through the matched V / I conversion active sensor access voltage channel, as the reference voltage signal
Current sampling	Current channel for built-in through-type low-current sensor sampling, information distortion less
Power Protection	The power outlet with the fuse, only need to pry the fuse box when changing the fuse
