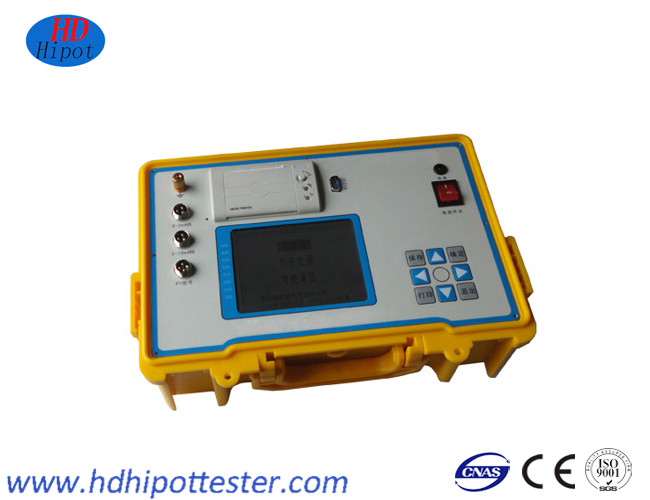

HDYZ-208 Zinc Oxide Arrester Characteristics Tester



Introduction

HDYZ-208 applies to test the MOA leakage current, analyzes the MOA aging and moisture extent. Accords with the requirement of Electric power industry standard of PRC: DL474.5-92 direction for insulating test on-site-lighting arrester test.  It can do the delivery test and acceptance test of the laboratory.

Features

1. With LCD, easy to operate.
2. High precision to sample, process circuit, advanced Fourier harmonic analysis technology; ensure the accuracy of the data.
3. Adopts the unique high-speed magnetic isolation digital sensor directly capture voltage and current signals, to ensure the data reliability and security;
4. With resistive current fundamental wave peak value output, edge correction and other functions.
5. With calendar clock, micro printer, can store the test data.

Parameters

Reference voltage input range (peak value)	10V～200V
Full leakage current measurement range (peak value)	100uA～8mA
Resistive current measurement range (peak value)	100uA～8mA
Capacitive current measurement range (peak value)	100uA～8mA
Angle measurement range	0°～90°
Power consumption	4W
Accuracy	±( reading×5% +5d)(harmonic wave current < 2mA)
AC power supply	AC220V ±10%，50Hz ±1%



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
