Description

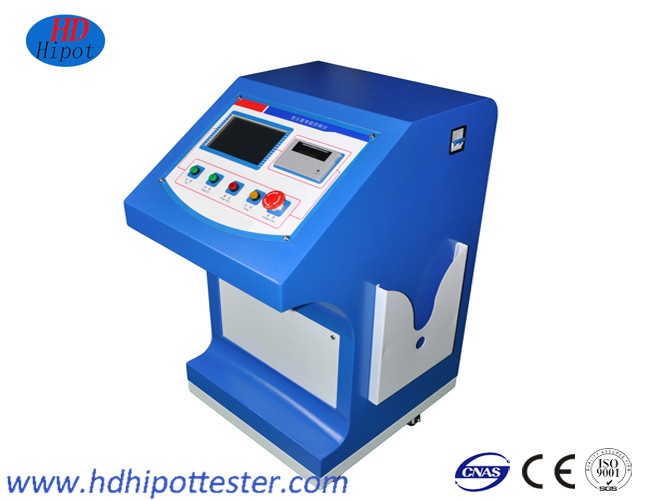

HDYD-Z Automatic Operation Cabinet



Introduction

HDYD-Z series automatic operation Cabinet is produced special equipment for light test transformer, easy to maintenance, superior performance, safety and reliability, good structure, durable, easy to move, etc. It is necessary equipment for supply enterprises, large factories, metallurgy, power plants, railways and other electricity maintenance department.

It uses advanced microelectronic processing techniques, all using  processes can be set in advance, and simple to operate. After setting all test items, automatically to test, without human intervention.

Features

1. Voltage, current, time, and withstand voltage time large LCD display, clear and directly reading;
2. The operation is simple and clear, can adapt to a variety of applications;
3. Light touching keys operation, all functions are controlled by the keys, improved the security and reliability of products;
4. Full digital calibration mode, abandoned old potentiometer adjustment, field use is very convenient, easy to control the accuracy (this function with password protection);
5. Key directly set test transformer ratio (this function with password protection), application freely connection of different voltage levels of tester, and a console can match with many sets of transformers;
6. Using hardware and software anti-interference technologies, stable performance, strong anti-jamming.
7. With four-line output, can be used for overcurrent, overvoltage protection ;
8. Time relay start, stop condition can be arbitrarily set. Time can be set from 1 second to 9999 seconds

Parameters

Measuring range	0～9999
Measuring accuracy	0.5%±2d
Setting mode	Light touching keys operation, after power off, the setting value will be saved up permanently
Protection mode	Abnormal work automatically reset (WaTChdog), undervoltage automatic reset
Power supply	AC220V ±15%，50Hz±2Hz
Dimension (50KVA)	500*400*900mm3
Weight (50KVA)	55kg
Dimension (20KVA)	500*400*1000mm3
Weight (20KVA)	85kg
Dimension (200C)	270*270*1300mm3
Weight (200C)	16kg





FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
