Description

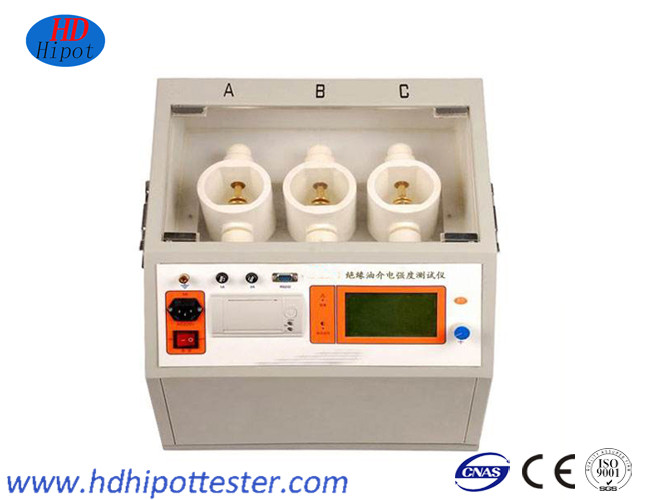

HDIIJ-80S Automatic Insulating Oil Dielectric Strength Tester (Three Cups)



Introduction

 This equipment was designed on basis of GB-86“Oil-insulating testing”, the process and result displayed by LCD, built-in EEPROM , can save 50 groups test results, all work can finished by mouse, test results printed by micro printer. This equipment is easy to operate, with powerful functions, stable and reliable, with strong anti-jamming ability, without death halt during the test.



Features

1.This process and test results are displayed by LCD.

2.Built-in EEPROM can store more than 50 groups test results.

3.All work can be finished by mouse, test results are printed by micro printer.

4.This equipment is easy to operate, with powerful functions, stable and reliable, with strong anti-jamming ability, without death halt during the test.



Parameters

Input voltage	AC 220V±10%
Output voltage	AC 0～80KV
A cup, B cup, C cup	Can be arbitrarily chosen and combined
Voltage boosting speed	2KV/s±10%
Accuracy degree	3
Number of times of continuous test	1～6
Stirring time	0～99 seconds
Standing time	0-9 minutes 59 seconds
Storage capacity	50 groups data
Voltage limit setting	20KV～70KV
Voltage withstand time	0～10 minutes
Temperature	5～40℃
Humidity	≤80%RH
Dimension	420×380×410mm3
Weight	28kg





FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
