Description

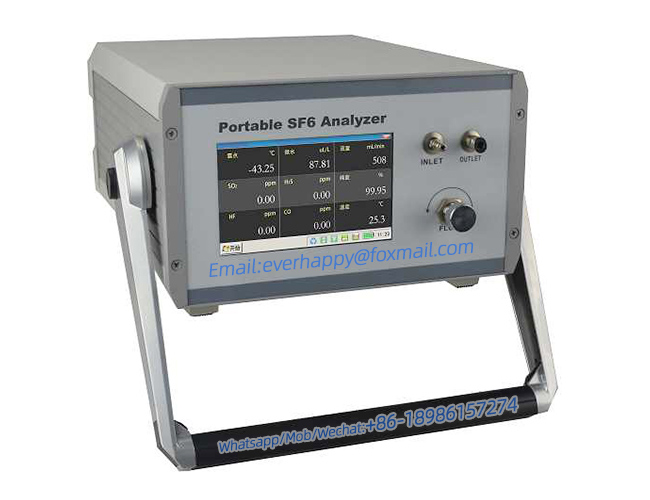

HDFJ-II SF6 Decomposition Tester



Introduction

SF6 decomposition tester integrates SO2, H2S, and CO analyzers as one. One time field measurement can complete the two detections, greatly save the gas in the device, which can save 1/2 of gas usage, while reduce the user's workload and improve work efficiency.

Features

1. Fast and save gas: after startup into the measuring state, the measuring time is about 2min
   2. Self-lock joint: use the self-lock joint imported from German, safe and reliable, without gas leakage.
   3. Data storage: high capacity, can store 200 groups test results at the most.
   4. Curve function: Large-screen curve display the process of dewpoint measurement
   5. Clearly display: SO2, H2S, and CO content, and temperature, humidity, time and date, etc, are displayed by LCD.
   6. Built-in power supply: built-in 4Ah chargeable lithium battery, filled one time, can work for 10 hours.

Parameters

H2S	Measuring range：0～100ppm
	The minimum detectable value：≤0.1ppm
	Accuracy：±0.5%
	Repeatability：≤1%
SO2	Measuring range：0～100ppm
	The minimum detectable value：≤0.1ppm
	Accuracy：±0.5%
	Repeatability：≤1%
CO	Measuring range：0～1000ppm
	The minimum detectable value：≤1ppm
	Accuracy：±0.5%
	Repeatability：≤1%
Temperature	－30℃～＋60℃
Humidity	0～100％ RH
Power supply	AC 220V
	Built-in rechargeable battery
Battery performance	Charging time : 20 hours ; can work for 10 hours
Weight	5kg
Dimension	250×150×300mm3
Working temperature	－40℃～＋80℃



FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
