Description

HVSF-Mini Portable SF6 Gas Recovery Device



Ⅰ Product Introduction:

HVSF-Mini Portable SF6 Gas Recovery Device is used in the manufacturing plant of SF6 gas insulated electrical equipment and operation & scientific research departments to fill electrical equipment with SF6 gas and recover SF6 gas from electrical appliances used or tested.

At the same time, it is purified and compressed and stored in the storage tank. Suitable for ring network distribution network below 50kV.

 More information:

Project, News, Video，please kindly click the letters to view:

Product: SF6 TESTING EQUIPMENT

Toutorial Video Of HVSF-III-H2S, SO2 3 in 1 SF6 Analyzer-Purity & Dew Point & Decomposition

News: HVSF-III-H2S, SO2 3 in 1 SF6 Comprehensive Analyzer DELIVERED to Southeastern Asian Customer

PROJECT: HVSF-III-H2S, SO2 3 in 1 SF6 Analyzer-Purity & Dew Point & Decomposition

Ⅱ Features:

Recover the gas in electrical equipment.

Drying the recovered and refilled SF6 gas.

Compress storage and bottle filling of SF6 gas in electrical appliances.

Directly press SF6 into a small gas cylinder (provided by yourself) for storage.

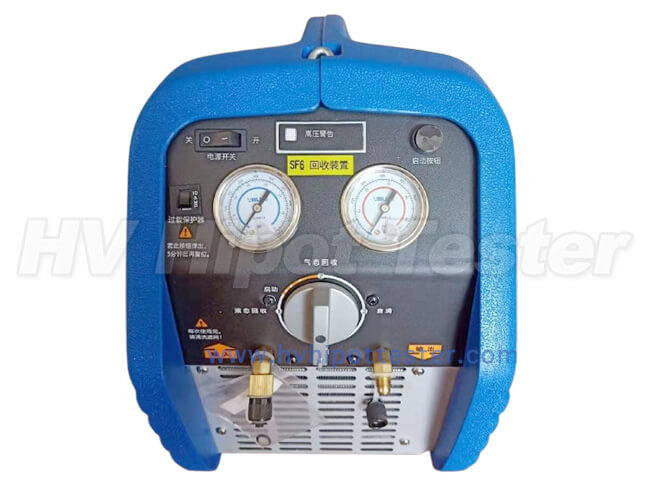

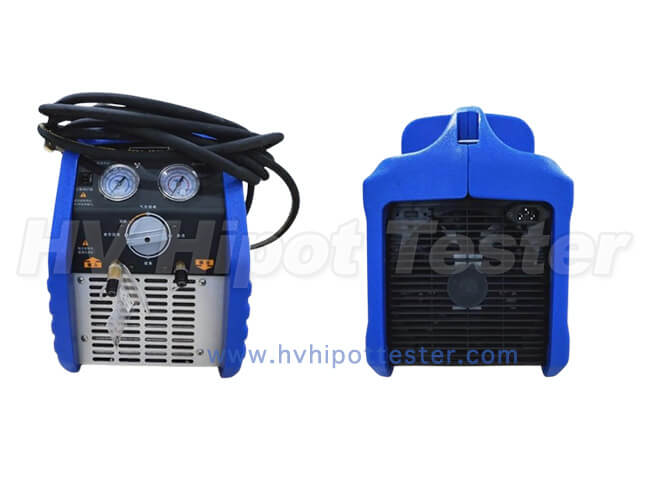

Ⅲ Product Outlook:

Ⅳ Technical Parameter:

Model	HVSF-Mini		Compressor exhaust volume		2.8m3/h Compressor CDS181
Compressor Origin	Italian original		Maximum exhaust pressure		5.5MPa
Maximum Suction Pressure	0.4MPa		Allowable exhaust pressure		3.8MPa
Cooling Method	Air Cooling
Recovery	Final pressure ≤53Kpa, gas recovery rate 20-30 kg/hour, liquid recovery 70-80 kg/hour
Storage	Liquid, can be directly pressed into cylinders for storage, the whole machine weight is less than 25 kg (excluding cylinders)
Noise	60DB	Size		L 500*H 400*W 300（Estimated, subject to actual delivery）
Power	1KW	Power		220V

V  Attachment list:

Name	Technical parameters or description	QTY
Compressor (built-in)	Imported from Italy, maximum pressure 3.5MPa, displacement 2.8m3/h	1
Interface pipeline for inflatable cabinet	Can be customized according to customer needs	1
Interface pipeline for gas bottle	Standard configuration	1

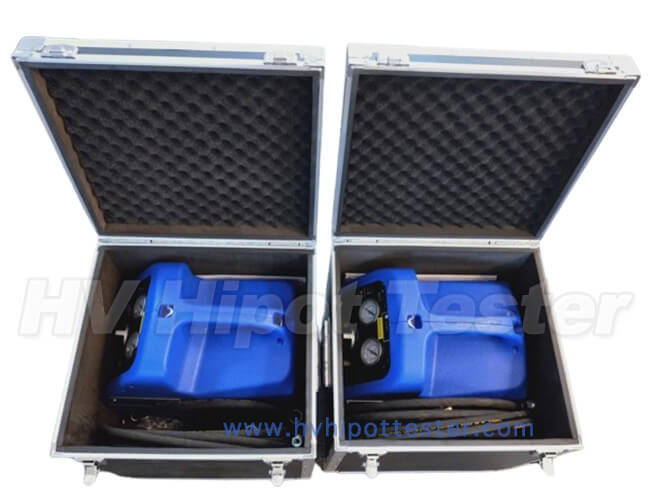

Aluminum alloy outer box	Portable outer box	1

VI.Preliminary：

A spare gas tank

Self-sealing valves that can be connected to electrical equipment

VII.Operation：

Left interface connects electrical equipment

Right interface connects electrical equipment Connect power supply AC220

Turn on the power switch

Gaseous recovery is generally used.

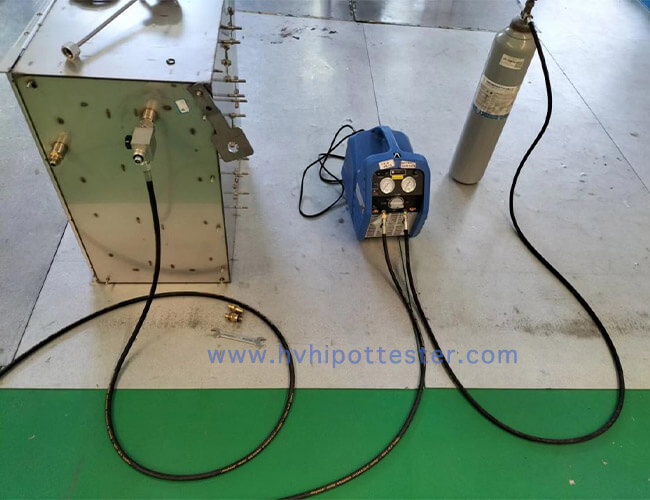

IX. Using Picture:

As shown in the figure above, SF6 gas is directly liquefied and recovered into an empty cylinder container.
