HVPD-IR-SW 3 In 1 Sound Wave Tester, Partial Discharge Tester, Infrared Tester-Multifunctional Tester
Introduction
Partial discharge detection of power systems , including insulation status detection of high-voltage switchgear, ring network cabinets, voltage/current transformers, transformers (including dry-type transformers), GIS, overhead lines, cables , insulators and other equipment. The following indicators are used to measure the discharge degree of electrical equipment:
Partial discharge intensity detection: By measuring the discharge signal within one power frequency cycle, the intensity of partial discharge is characterized by the maximum value (dB) in the discharge pulse sequence.
Partial discharge frequency detection: By measuring the discharge signal within one power frequency cycle, the discharge pulse is extracted and the frequency of partial discharge is characterized according to the number of discharge pulses.
Features

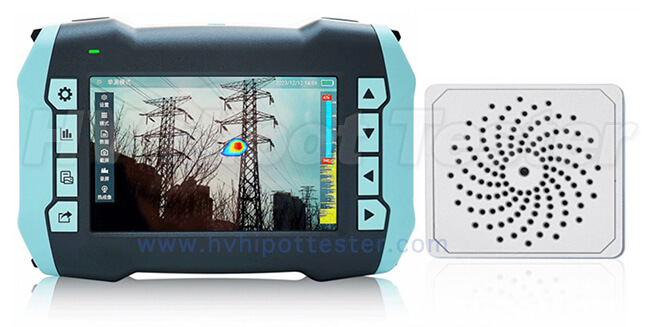

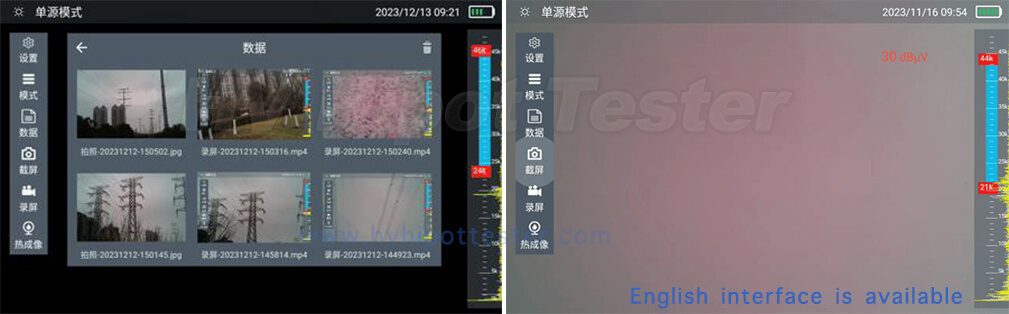

☀The acoustic imaging module is developed to match the application scenarios of power system inspection robots, drones, online monitoring, etc., and can be adapted to a variety of occasions. Once a gas leak occurs, the acoustic imaging module can sense the ultrasonic waves/sound waves generated by the gas leak, thereby locating the location of the leak and issuing an alarm. This function is based on acoustic imaging technology, using a microphone array to scan spatial sound waves, determine the fault location through the phase difference of the sound waves, and obtain an "acoustic image".

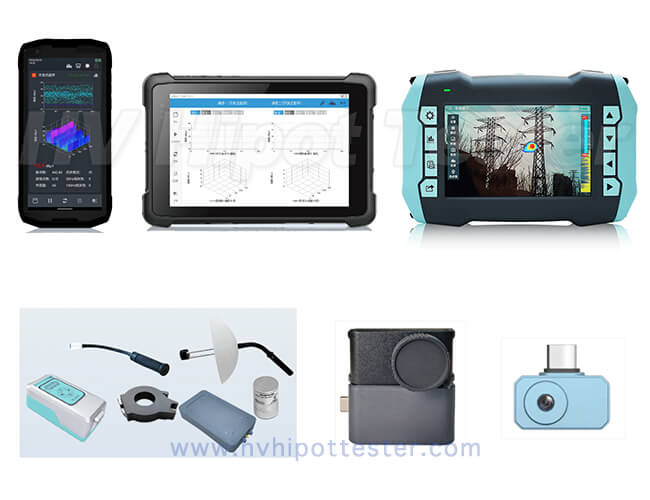

☀Configure different sensors to realize partial discharge detection of almost all high-voltage electrical equipment;
☀Provide time domain waveform, PRPD, PRPS and other discharge spectra to realize the analysis of different discharge types;
☀Humanized human-machine interface facilitates data management of different devices;
☀ The multifunctional partial discharge sensor has a small precision structure, accurate data collection and a variety of measurement principles, which can realize partial discharge detection of various electrical equipment, including ultrasonic, geomagnetic wave and contact ultrasonic measurement principles. You only need to change different sensors to perfectly solve the partial discharge detection task of high-voltage electrical equipment. It can be connected to special sensors such as GIS, overhead lines, cables, etc.

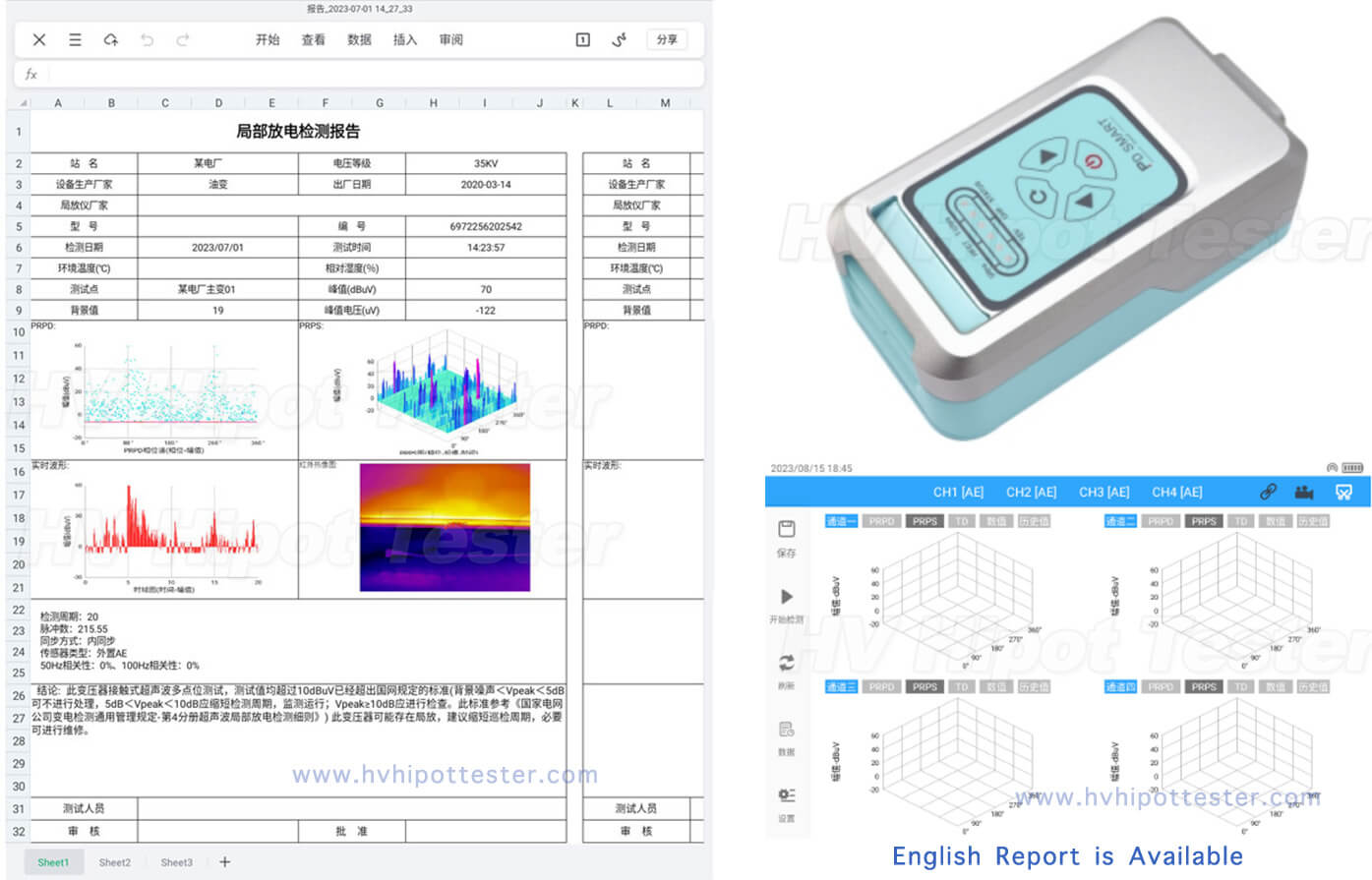

PS: Partial Discharge Functions List: Synchronous multi-channel display of PRPD/PRPS spectra and other important data . Screen recording, screenshots and export to USB. Four channels: The host interface has four channels for display, and four partial discharge sensors can be connected at the same time .
RFID radio frequency identification technology identifies and reads and writes relevant data through tags.
☀It adopts non-invasive detection method, and there is no need to shut down the power during the test, and no need to configure an additional high-voltage source. It is more convenient to use than the traditional pulse partial discharge detector;
☀The test bandwidth range is 30kHz ~ 2.0GHz, applicable to the detection principles of various frequency bands;
☀The added infrared thermal imager can convert the infrared radiation on the surface of an object that is invisible to the naked eye into a visible image. Infrared thermal imaging is not affected by visible light and has the advantages of non-contact temperature measurement and penetrating smoke and fog. It is very suitable for temperature detection of electrical equipment.
☀The image color and hot spot tracking display function displayed on the screen can be used to preliminarily judge the heating situation and fault location, thereby confirming the problem efficiently and accurately.
Product Application Areas
☀Power generation and distribution companies
☀Railway system
☀Petrochemical power supply system
☀Aerospace testing field
☀Automated testing field

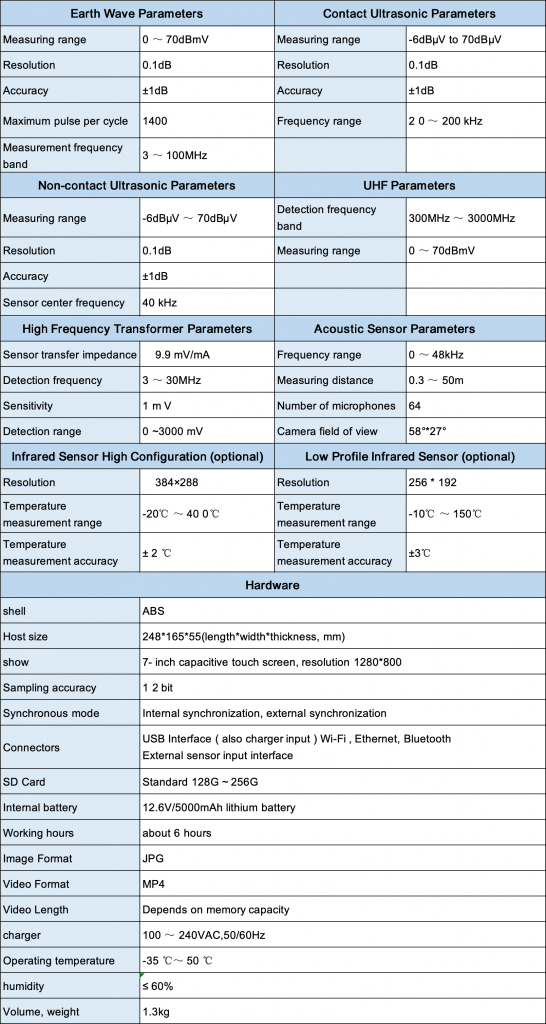

Parameters

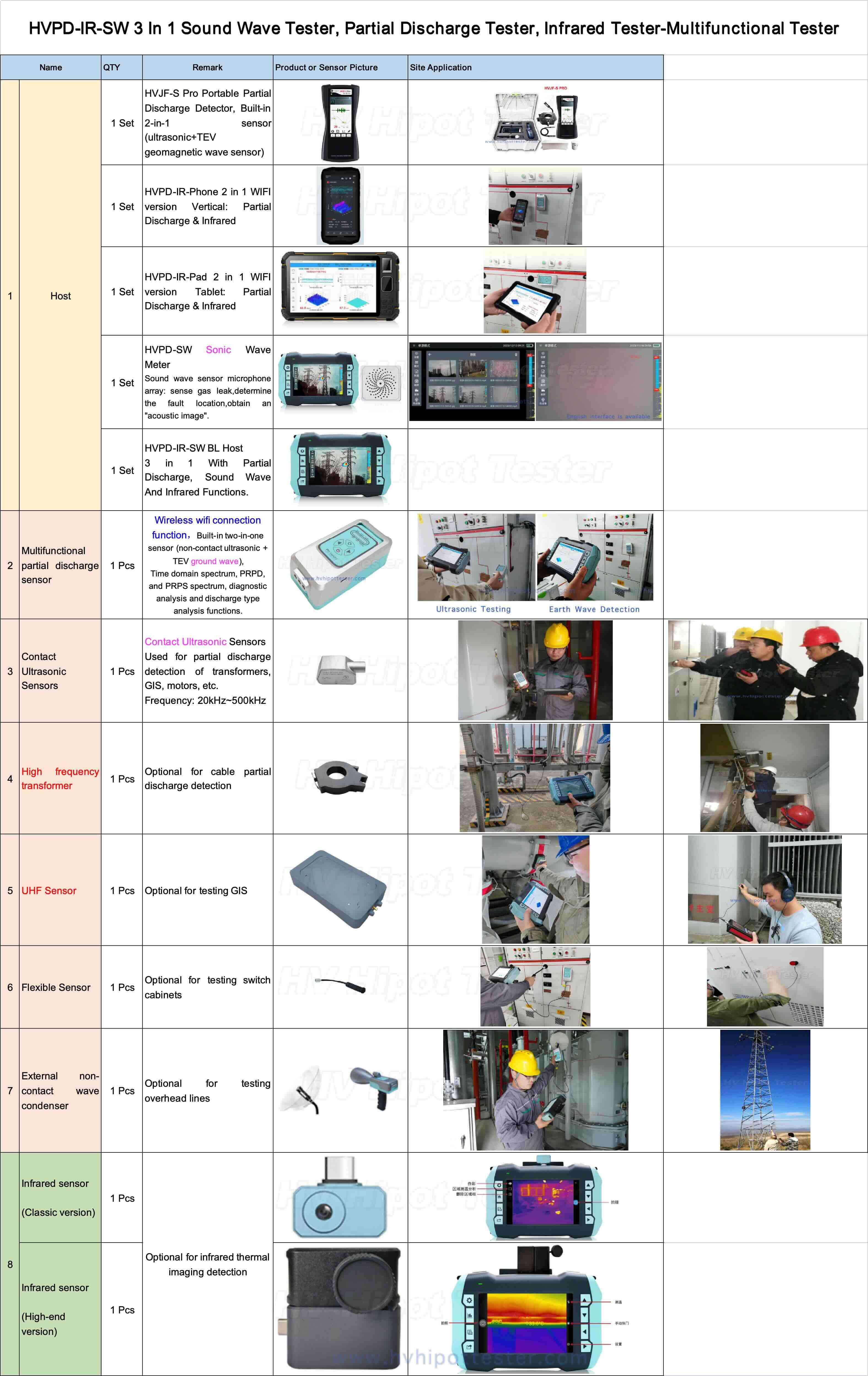

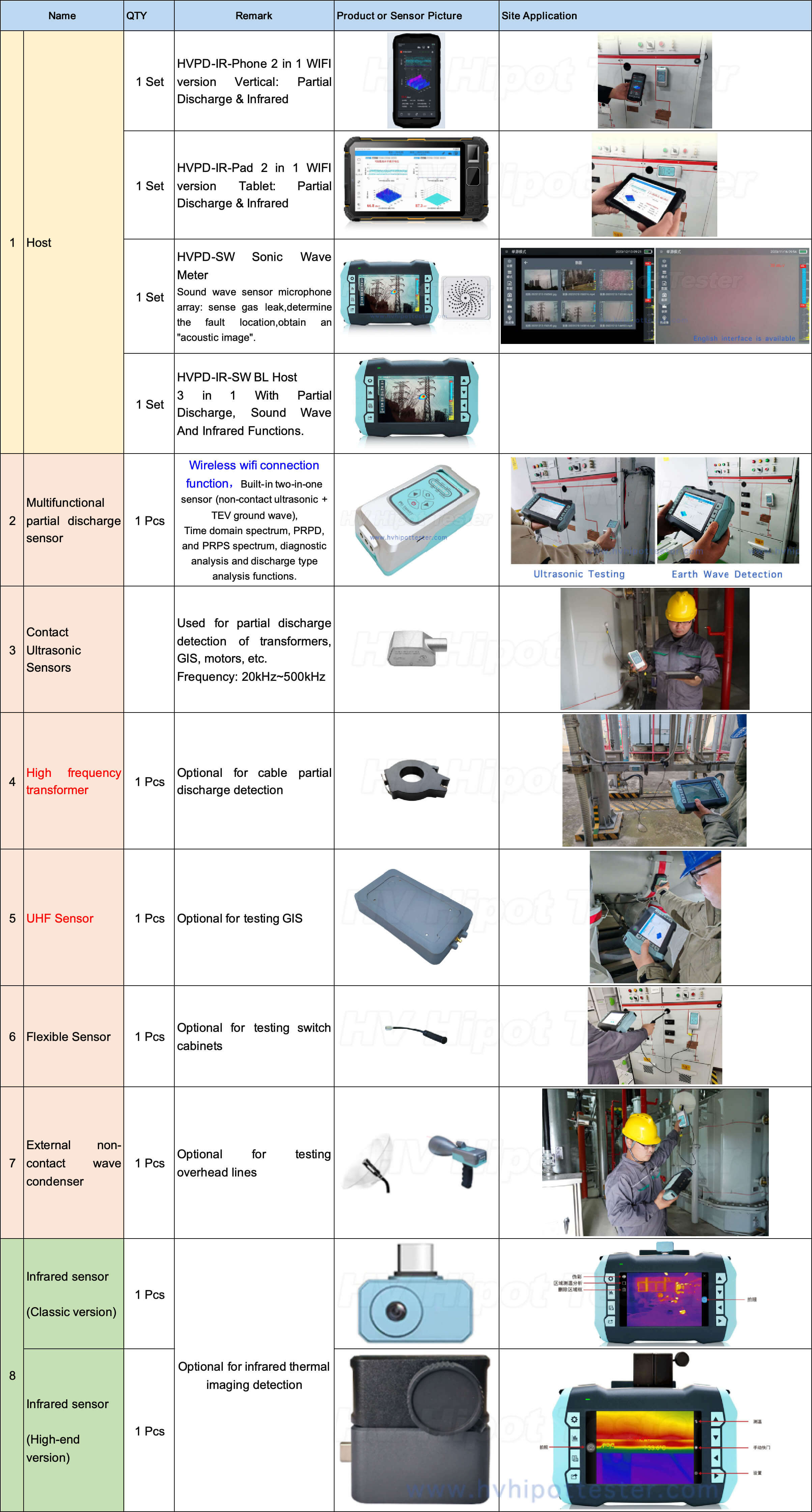

Host, Optional Sensor List
