Description

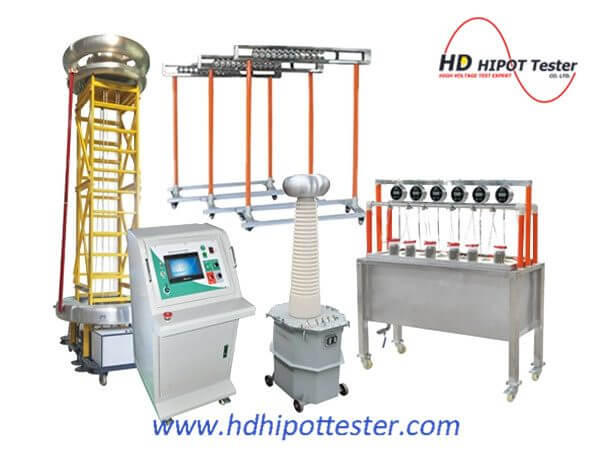

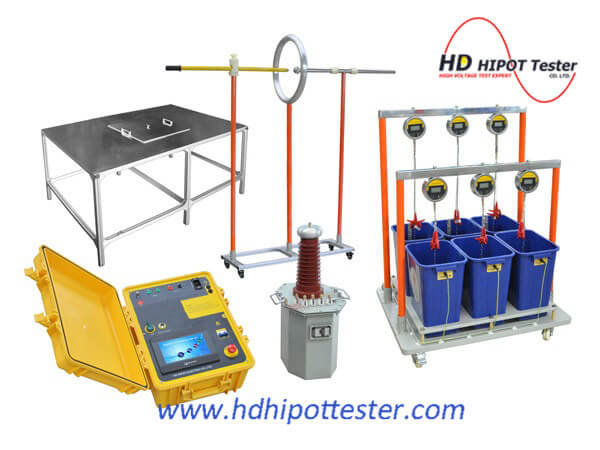

HDST Series Safety Tools AC Insulation Test Set

HDST Series Safety Tools AC Withstand Voltage Test Set

HDST Series Safety Tools AC Dielectric Test Set





Application

Test insulation performance for insulation gloves, boots, mats, hats, rod( 6-110kV), electroscope(6-110kV) etc



Main Features

HV source is oil immersed type testing transformer.(dry type and SF6 gas type for option.

7inch LCD touch screen

HV Voltage, LV voltage, LV current measured at the same time

PLC automation control unit, Control unit and HV unit are separate, to ensure safety.

With anti-interference ability, suitable for electromagnetic environment.

Store up to 8000pcs data in 3months. It has USB port to upload data to USB disk.

When setting voltage is arrived, it will timing automatically. After timing, voltage will be back to zero. If there is breakdown or over limits, the HV output will be cut off automatically and alarm.





Parameters

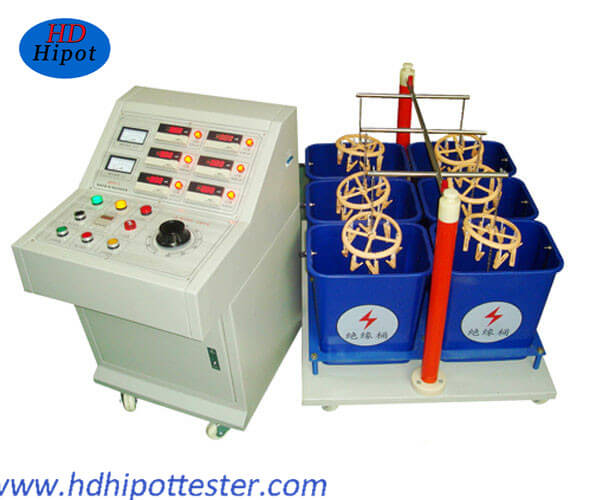

HDST-Z

Input voltage	～220V 50Hz
Output voltage	0～30kV
Capacity	3kVA
Test quantity	6 each time
Measured data	Display and print tested voltage value; leakage current value; Over-current protection; over-voltage protection; custom time, voltage, and leakage current value.
User interface	LCD, with printer
Measurement accuracy	Voltage: ±2%（±3d）	Current: ±2%（±3d）
Weight	Control cabinet: 12Kg, test bed: 60kg

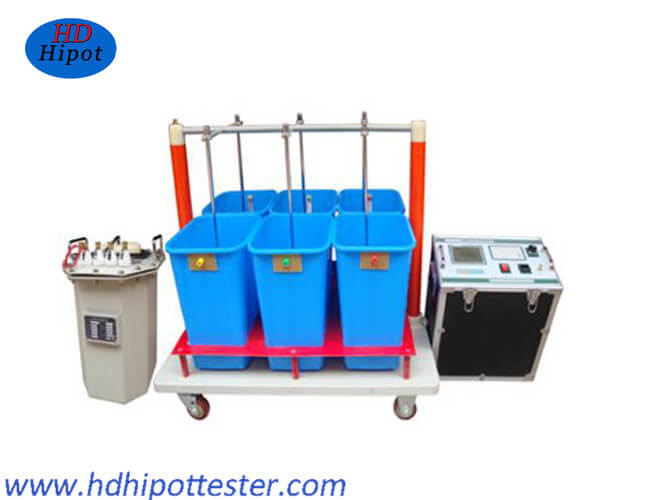

HDST-S

Input voltage	AC220V 50Hz
Output voltage	0～30kV
Capacity	3kVA
Numbers	3 pairs each test
Weight	glove (boot) test bed：80KG; Frequency voltage withstand test bed: 70KG

Features

1. Fast test speed, improve the efficiency.
2. Voltage withstand, HV，LV leakage current direct reading, auto identify unqualified measured equipment, high degree of intelligence.
3. Simultaneously test three pairs of insulating boots (gloves), read out leakage currents of each boot (glove), accurately determine unqualified insulating boots (gloves).
4. Having casters at the bottom of structure make it move freely.

The OTHER electrode devices as below:

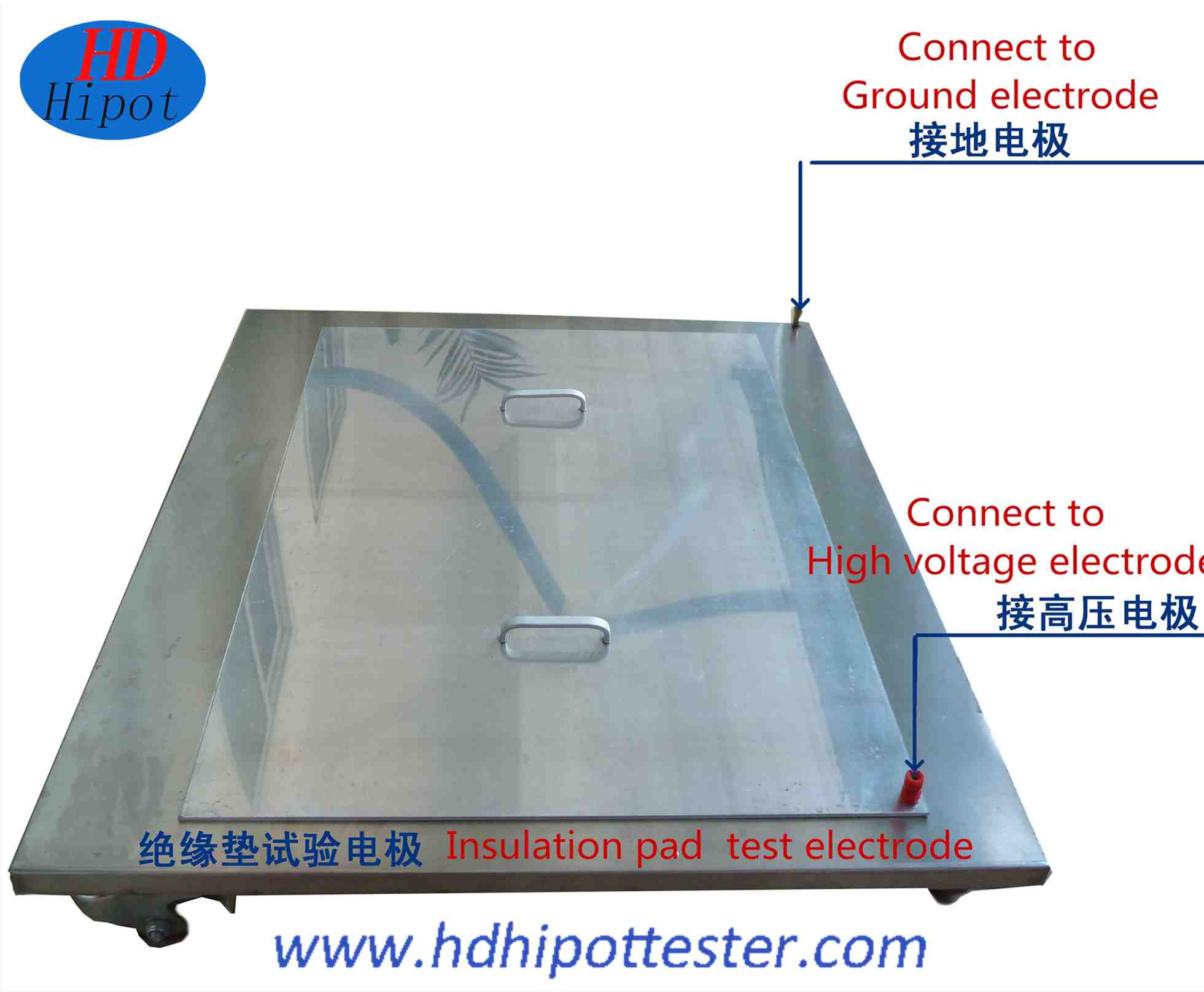

HDST-D Insulation pad insulation separator test electrode

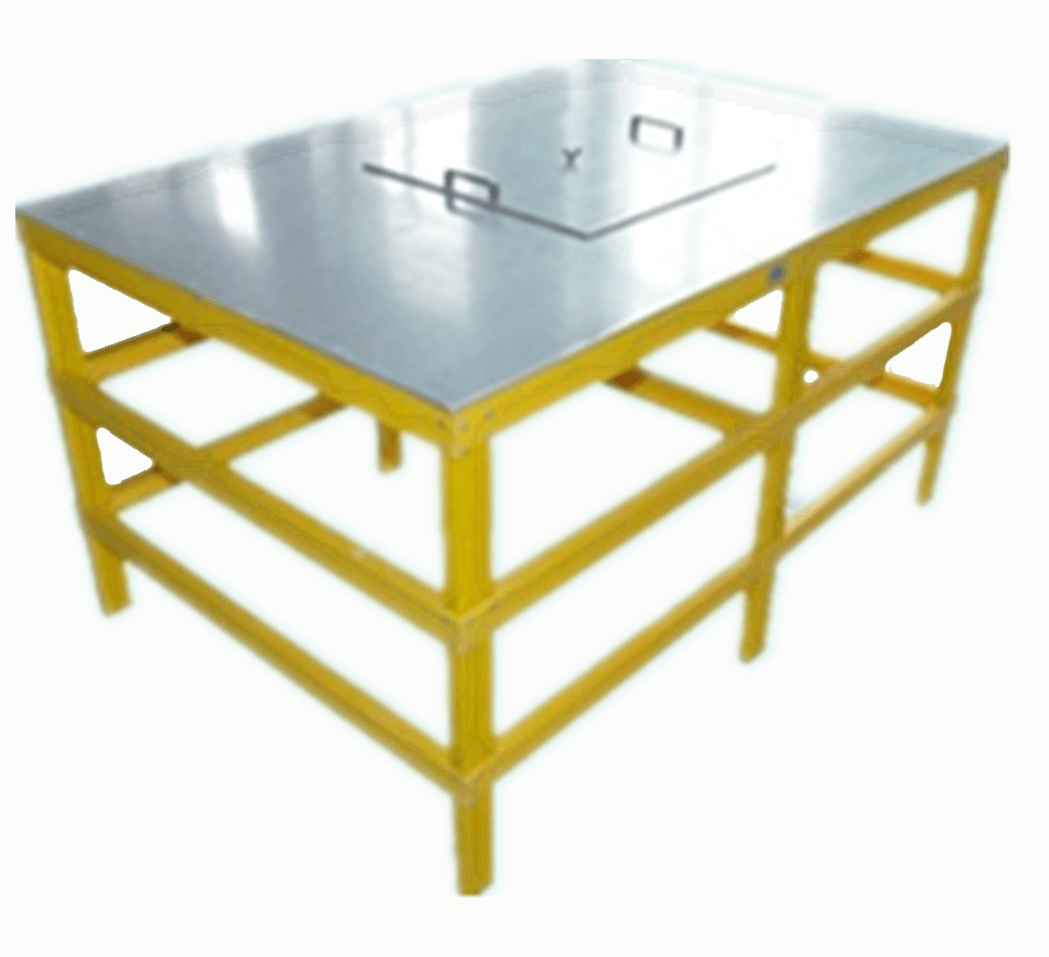

Electrode for withstand voltage and leak test of Insulation Mat & Blanket.



Technical Description

1 Use: non-fixed placement,

2 Altitude: not less than 2000m

3 Environment Temperature:Highest temperature:+40 ° C, Lowest temperature -25 ° C

4 Maximum wind speed: no more than 34 m/s (equivalent to wind pressure 700Pa)

5 Earthquake intensity 8 degrees

6 Environment relative humidity (at 25 ° C) less than 90%

7 System rated voltage: no limit

8 Upper electrode: 600 × 800mm (high voltage electrode)

9 Lower electrode: 800 × 1000mm (ground electrode)

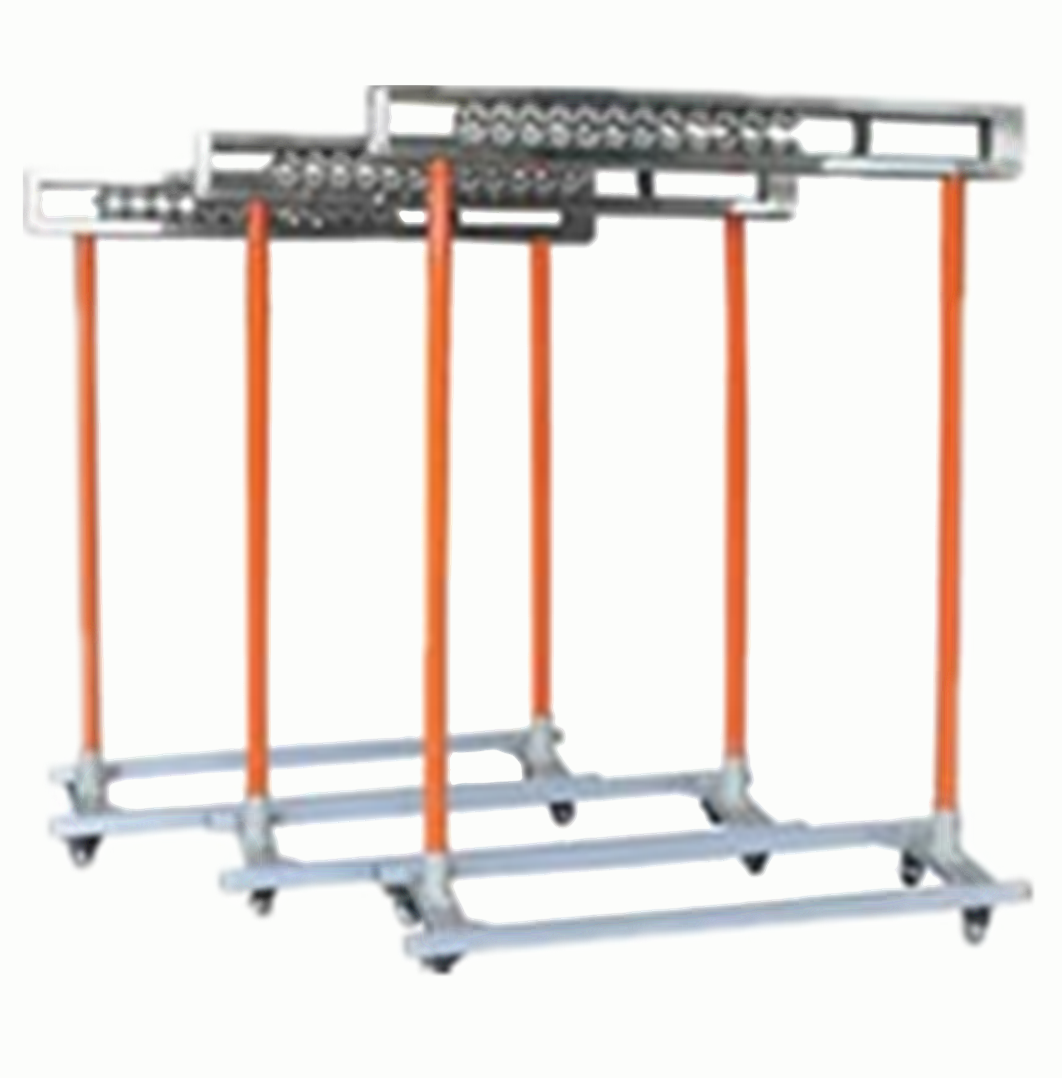

Insulation rod stand to make withstand voltage and leak test for insulation rod.

Remark: If making test for 220kV and above insulation rod, motorized lifting electrode of insulation rod is suggested.

Electroscope testing device to make start voltage, in-phase, out-phase interference test for electroscope.

Electrode for insulation Rope  &  Insulation Clothes
