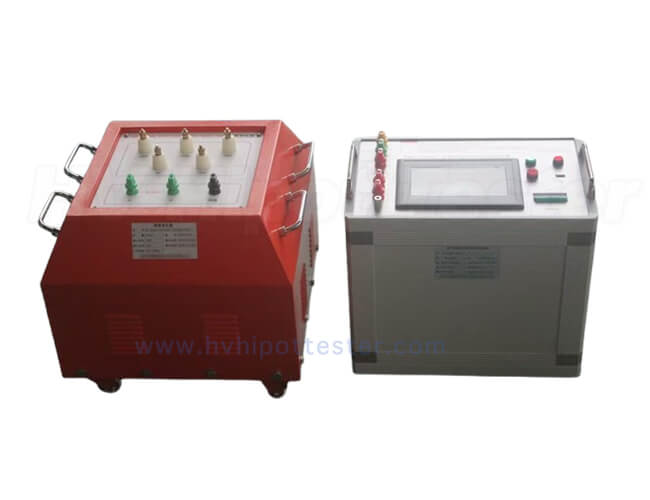

HVSBP Triple Frequency Induced Withstand Voltage Test Set
Ⅰ. Introduction
The device uses power electronics and a frequency converter. It adopts digital control for parameter preset, protection, frequency selection, and voltage regulation. Features include a built-in computer, 8-inch LCD, 3200-group data storage, touch operation, and a thermal printer for Chinese characters. Test frequencies 50Hz, 100Hz, 125Hz, 150Hz and 200Hz (50Hz to 200Hz, preset or arbitrary) and voltage (adjustable by touch, with step sizes of 1V, 2V, 5V, 10V) can be set for multi-frequency test voltage output. An external LC filter ensures waveform distortion is within range, and an external compensation inductor improves load capacity.
Abandoning the traditional three-phase five-column triple frequency principle generator's principle brings advantages below:
1.Smaller size, lighter weight, easier power increase,
2.Capable to output not only triple frequency, but also multiple (1, 2, 3, 4 times frequency) test voltage.
3.Simpler operation and wiring, and reduced power supply requirements for field tests.
More information:
Project, News, Video，please kindly click the letters to view:
Product: Category: AC/DC Hipot Test Set
II . Device name and configuration
| No. | Device Name | Specifications | Unit | Quantity |
| 1 | Multi-frequency control box | D PF - 50 kVA /38 0V | PCS | 1 |
| 2 | Intermediate transformer | GB- 50 kVA/ 1000V / 0.4kV | PCS | 1 |
| 3 | Test line | Bag | 1 |
III . Main equipment technical indicators
Multi-frequency control box HVDBP-50kVA / 380V:
a)Rated output capacity : 50kVA
b)Working power supply: 380 V (three-phase) ± 10% V, power frequency
c)Output voltage: 0 – 38 0V, three-phase ,
d)Rated input current: 72.1 A
e)Rated output current: 72.1 A
f)Output waveform: sine wave
g)Voltage resolution : 0.01kV
h)Voltage measurement accuracy: 1.5 %
i)Frequency adjustment range: 30 – 300 Hz
j)Frequency adjustment resolution: ≤ 0.1 Hz
k)Frequency stability: 0.1%
l)min continuously at rated capacity
m)The maximum temperature of components when running continuously for 15 minutes at rated capacity is ≤65K;
The following functions can be realized
Intermediate transformer :
1．Type: Dry
2．Input voltage: 400V
3．Rated capacity: 50 kVA
4．Output voltage: 1000V
5．Output current : 28.8 A ;
6．Working frequency : 50 ~ 300Hz
7．Running time: 15 minutes at rated voltage is allowed;
Weight: Approx . 180kg
