HV3600  Insulation Resistance Tester

Ⅰ Introduction

Our HV3600 uses embedded industrial micro-controller real-time operating system , digital-analog pointer and digital segment display perfect combination, this series products with a variety of output voltage level ( 2500V , 5000V, 10000V ) , strong anti-interference, analog pointer with digital synchronous display, available for both AC and DC, simple operation , automatically save measurement results. It is the ideal test instrument for measuring insulation resistance for transformers, mutual inductors, generators, high-voltage motors, and arresters.

 More information:

Prduct, Video, News, Project，please kindly click the letters to view:

Product: INSULATION RESISTANCE TESTER

News: A good dispatch of Megohmmeter Insulation Resistance Testers

PROJECT: Megohmmeter Insulation Resistance Tester

Ⅱ Features

1.Output voltage (2500V/5000V/10000V), resistance measurement range 0~ 400GΩ.
2.Two ways synchronous display resistance value. The variation range of the insulation resistance can be easily observed by analog pointer, display can easily read the test results.
3.Uses embedded industrial micro controller real-time operating system. With high automation degree, strong anti-interference ability, auto saves test results.
4.Friendly interface, various measurement results against power failure function, can store the measurement results for 19 times.
5.If the instrument with high voltage, there will be prompt tone and with corresponding display.
6.AC/DC dual-use, built-in rechargeable battery and AC adapter.
7.Portable design, convenient for field operation.
8.High voltage short circuit current≥1mA, it is an ideal insulation resistance tester to measure transformer, instrument transformer, generator, high voltage motor, power capacitor, power cable, arrester, etc.

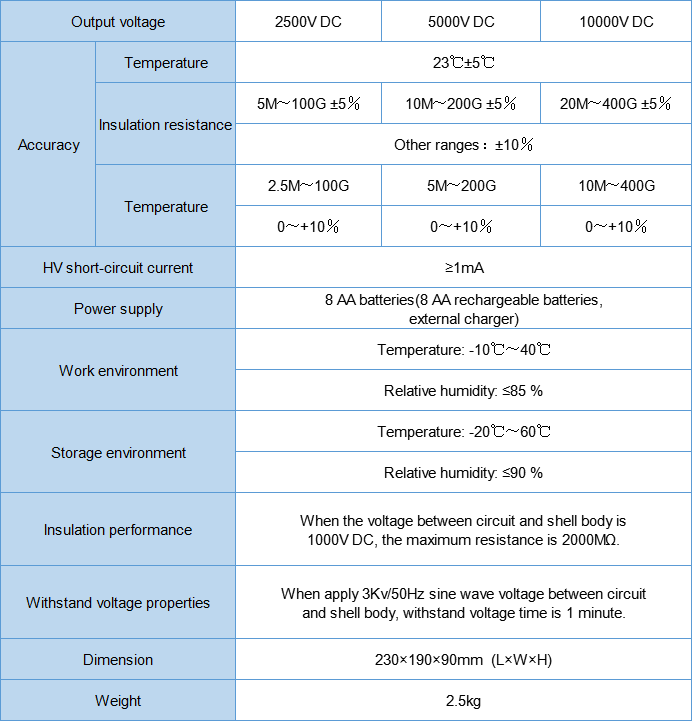

Ⅲ Parameters
