HVDC-970 Battery Charge tester for Battery Pack

HVDC-970 Battery Charge Tester is mainly used for the charge test of the lead-acid battery of the backup power supply in the telecommunications, mobile, substation, railway transportation and pertrochemical industry power DC industries. It keeps the constant communication maintain between the battery charge ensuring a perfect charge.

Battery charge tester is designed using intelligent three-stage charging mode to achieve the function of automatic conservation between charging and floating charge. It also can on-line detect the voltage of the whole battery, real-time display and record the voltage of whole battery. The tester can automatically accomplish charging after setting the parameter of voltage, current, time and capacity.

Features

● PC software can record and analyze total voltage, discharge current ,cell voltage and other data , generate the data report . it can virtually reflect battery serious performance curve, diagram and report for printing and searching .
● Connected with USB interface,the data of the discharge process can be record to U disk and transformed to PC by U disk . PC data manage software can analyze the discharge process and generate the corresponding data for more convenient storage .
● Intelligent SCM ARM control, 7inch 1024*600 LCD screen , capacitive touch operation, built in English menu, simple and clear operation menu.
● Automatic self-protection stop function, over-heat protection ,over voltage protection , over current protection and reverse connection protection ,alarm prompt is displayed on the screen once it appears any issue, air circuit breaker automatically cut off .
● It can set termination condition including cell battery voltage high,whole group voltage high, charge charge time , charge capacity .When any condition can be met, the tester can stop automatically testing with buzz sound and record the stop reason at the same time.
● It can perform on-line compensated charge/discharge, and can also carry on discharge test for on-line working storage battery by connection external current clamp sensor,which is convenient for measurement work. The function is suitable for only single set of backup battery .
● RS485 remote control the charge.

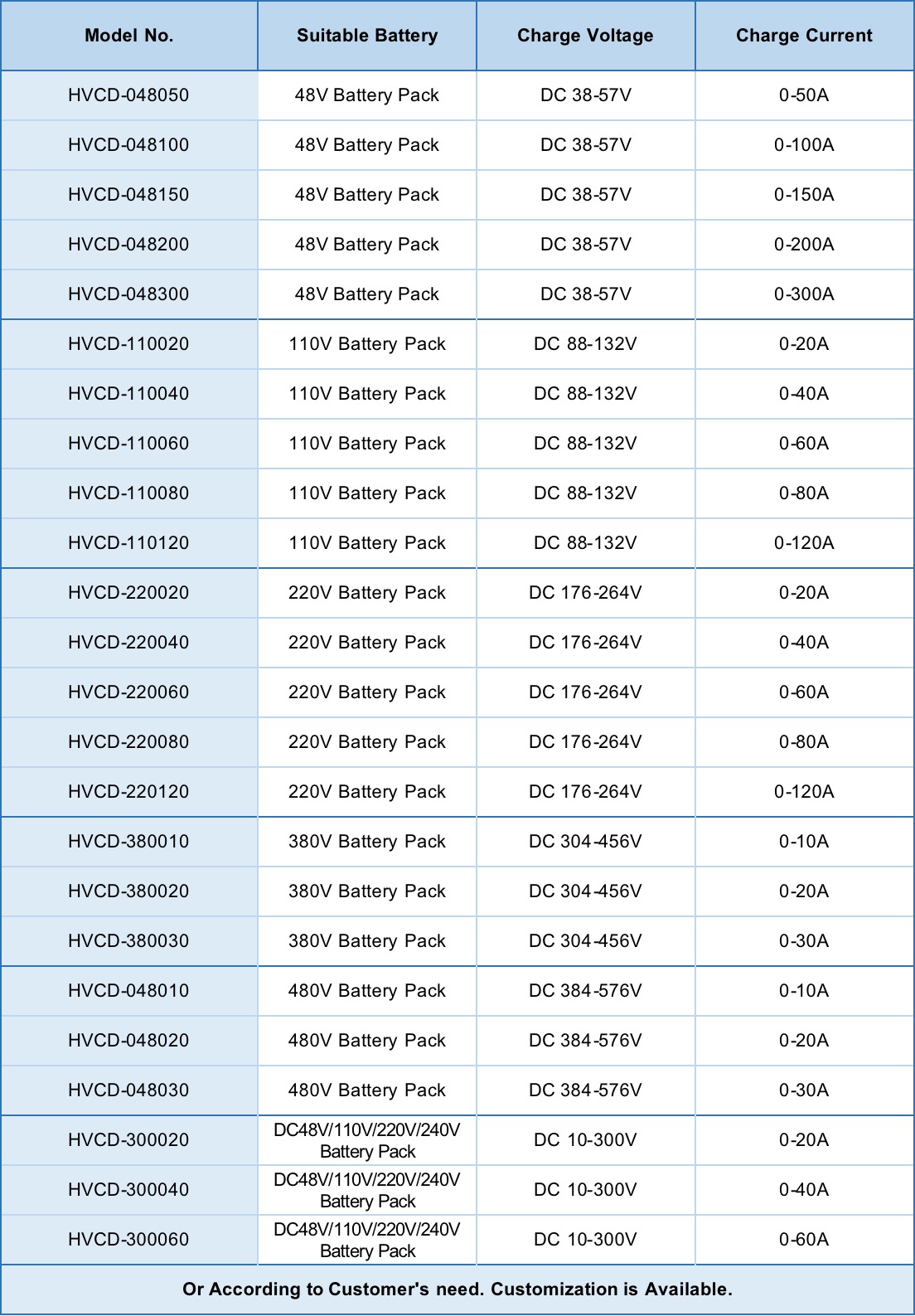

Series Models and Configurations

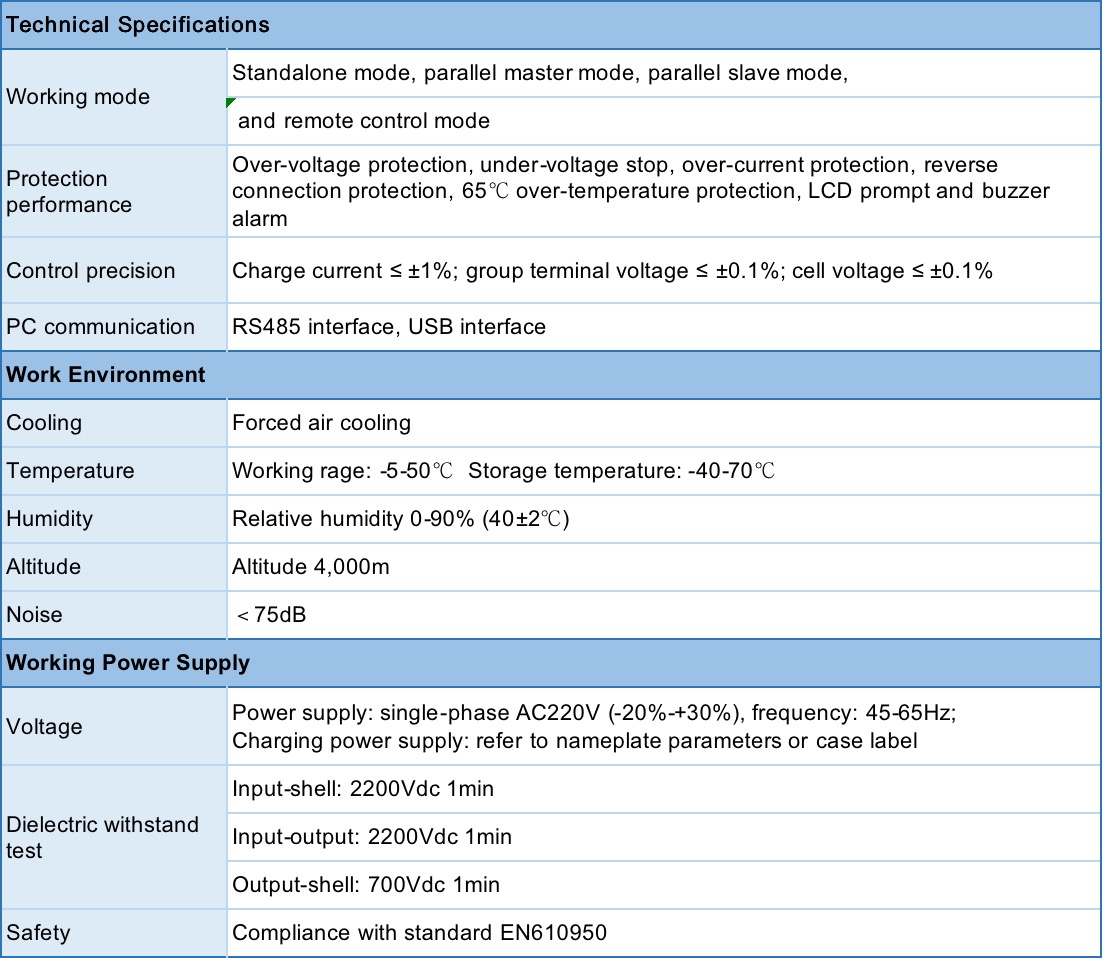

Technical Specifications

FAQ:

1. When can I get the price?

We usually quote within 6 hours work time after we get your inquiry. If you are very urgent to get price, please call us or tell us in your email so that we will regard your inquiry priority.

2. What about the delivery time for production?

Honestly, it depends on the order quantity and the product. Usually our leading time is within 7 working days after order confirmation.

3. What is your payment terms?

We accept EXW, FOB, CFR, CIF, DDU, ect. You can choose the one which is the most convenient and cost effective for you.

4. How much will the Shipping cost and time be?

This will depend on size of your goods and method of shipping (by sea/ by air/by Express) and your designated seaport or airport. We will be grateful if you can spare us some minutes to evaluate the cost based on the information of product.

5. Could you please tell me the Warranty Period of your product?

Our warranty period is one year free and lifelong maintenance. If the product is damaged (if not man-made damage), in the first year,we will send free parts for replacement. Over warranty, maintenance is paid service.

6. Do you have Technical Backup to all customers from different countries?

To be sure,our technical support is always available and quick response.
We are manufacturer with much on-site testing experience, thus we know how to deal with your problems. Moreover, our engineers can go to your country to support if needed.
