HV-XRAY3543 Power Line Clamp Flaw Detector with Portable X-ray Machine &  DR Camera Imaging System



Ⅰ. Introduction

      HV-XRAY3543 is a 14 × 17-inch wireless portable flat panel detector based on amorphous silicon sensor technology. It is shock-resistant and drop-proof.

    The detector is designed for industrial ruggedness, making it highly radiation-resistant, adaptable to a wide range of environments, and highly reliable. Data and signal communications can be achieved through wired or wireless interfaces.

    The SDK software development kit provided by our company supports the Windows operating system, allowing you to easily configure the detector parameters, calibrate, collect images, and observe images.

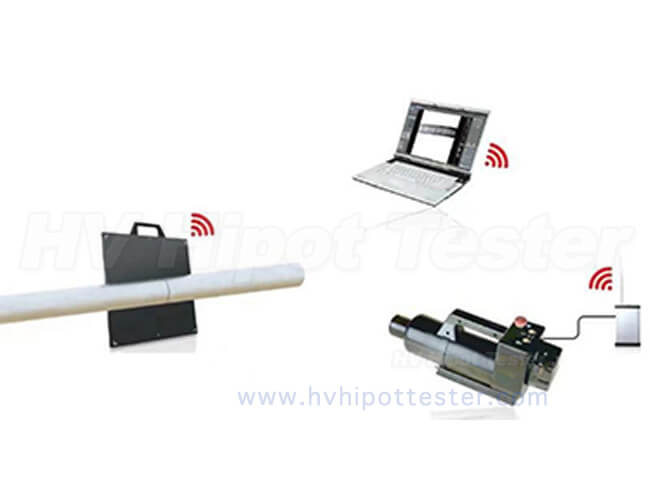

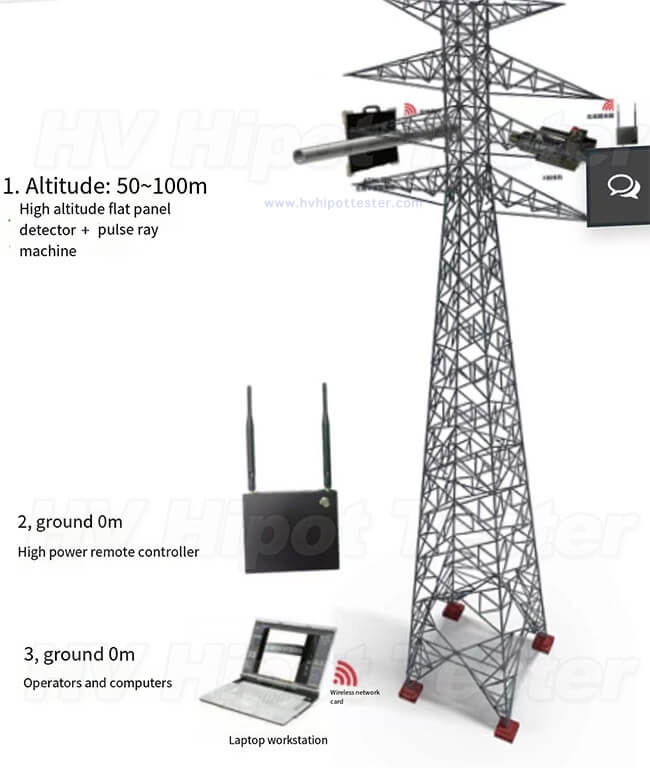

    Due to its excellent image quality and reliability, the HV-XRAY3543 can be used in industrial inspections such as portable on-site inspections, power expansion clamp flaw detection, or suspicious object detection.



 More information:

Project, News, Video，please kindly click the letters to view:

PRODUCT: UNDERGROUND CABLE/LINE/PIPELINE TESTING INSTRUMENT

VIDEO: CABLE/LINE/PIPELINE TESTING INSTRUMENT

NEWS: CABLE/LINE/PIPELINE TESTING INSTRUMENT

PROJECT：CABLE/LINE/PIPELINE TESTING INSTRUMENT





II. Flat Panel Detector - Technical Parameters

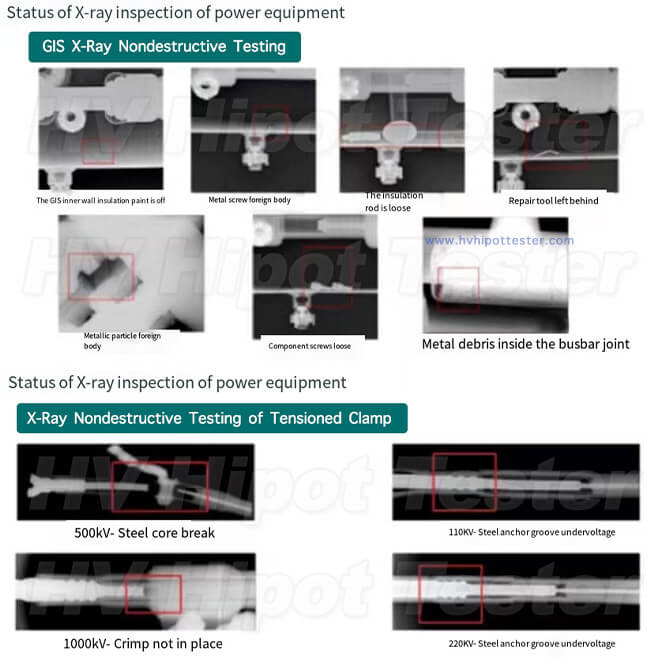

III. Flaw Detection Effect Diagram

Micro Focus X-Ray Inspection Method for Cable Intermediate Joint

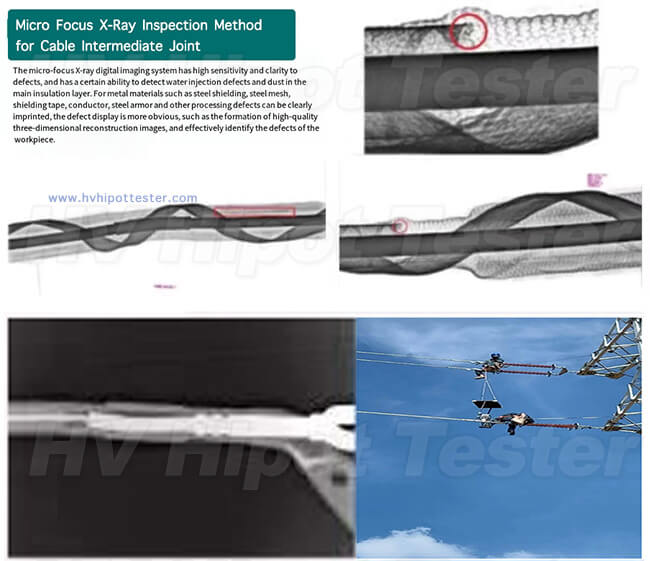

The micro-focus X-ray digital imaging system has high sensitivity and clarity to defects, and has a certain ability to detect water injection defects and dust in the main insulation layer. For metal materials such as steel shielding, steel mesh, shielding tape, conductor, steel armor and other processing defects can be clearly imprinted, the defect display is more obvious, such as the formation of high-quality three-dimensional reconstruction images, and effectively identify the defects of the workpiece.

IV.Equipment Configuration

Name	Parameter	Specification
X-ray machine	Power Kv: 270 Ma: 0.25 Size: 36cmx15cmx10cm Power frequency: 50HZ-1HZ Weight: 5.5kg	Pulse exposure mode, high-efficiency exposure, strong penetration, easy to carry
Flat-panel detector	Size: 35.0cmx43.0cm Pixel: 139um A/D conversion: 16Bit Pixel matrix: 3000x3000 Preview time: 3s Weight: 3.3kg	Cesium iodide amorphous silicon material, strong stability, high-speed image processing, excellent clarity,
DR software		Powerful functions, efficient image reception, powerful processing modes such as splicing, optimization and cropping, easy to understand, and international standard DICOM30 format and storage modes
Li-ion battery	Size: 13cmx7cmx3cm Weight: 0.5kg	Multiple interfaces: 12v, 24v. Power supply time: 12 hours
Wireless router	Size: 8cmx8cmx8cm Weight: 0.3kg	Long signal distance: 300m
Portable support stand	Carrying size: 542mmx466mmx750mm Use size: 46cmx75cmx46cm Weight: 5kg	Easy to carry, simple to operate, wear-resistant, pressure-resistant, high temperature and cold-resistant
Laptop computer	CPU: 2.5G Memory: 4G Disk memory: 256G Display: 11'' inches	Large memory, strong system, fast signal reception, portable
